Y branch connections SH600 (Y-SH600)

Technical specifications

  • Compliant with CEI EN 50393 standard for low voltage joints
  • Self-extinguishing in accordance with EN 60695-2-11 standard
  • Low smoke and toxic gas emission in accordance with CEI 20-37/2-1 and CEI 20-37/4 standards
  • Protection level: equivalent to IPX8 (CEI EN 60529) tested in water at a depth of one metre (CEI EN 50393 par. 8.6.3)
  • Operating temperature: -20 to 90°

Applications

  • Y branch connections on 0.6/1 kV and multicore cables with up to five cores
  • For installation in cable ducts, underground, overhead, and underwater
  • Street lighting systems, light fixtures, galleries, and environments at risk of fire

Advantages

  • Connection without interrupting main cable
  • Ready to use
  • Re-enterable
  • No resin mixing and casting
  • Usable immediately
  • Excellent electrical insulation
  • Good mechanical resistance
  • No expiry date

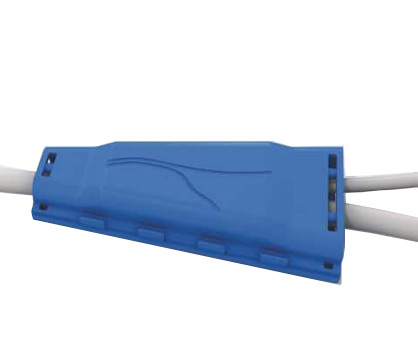

Gel insulated 30° branch connections for single and multicore 0.6/1 kV cables with up to five conductors.
The innovative insulated terminal blocks supplied with the joints allow branch connections without interrupting the main cable and ensure double insulation and the correct positioning and securing of the cable inside the joint.
The Allen key necessary for tightening the terminal screws is also included in the kit, and reduces the number of tools required to make the connection.

Beskrivelse



150 Y branch connections Single-core cables



Y branch connection on single-core cables
with insulated connector



516 Y  branch connections Five-core cables

Y branch connection on five-core cables
with insulated terminal block



535Y branch connections Five-core cables

Y branch connection on five-core cables
with insulated terminal block
