Beskrivelse
Pris på forespørsel

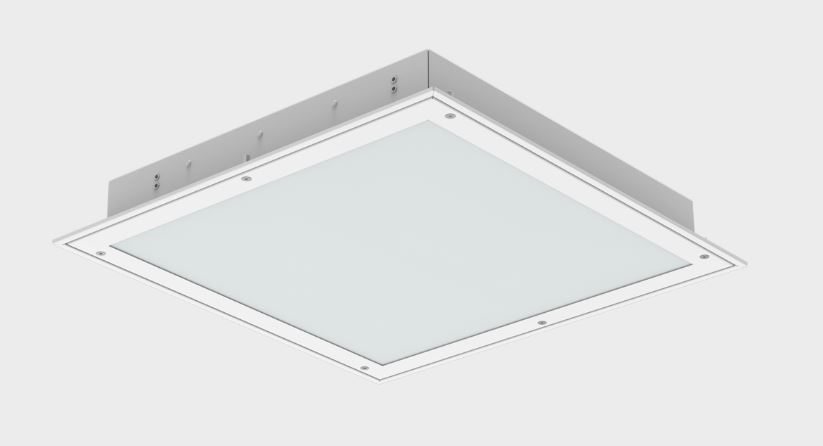

Recessed LED lighting fixture designed for clean areas in hospitals (operating theatres, Intensive Care Units, ambulances, surgery rooms, etc.), laboratories, microelectronics production, food industry
– IP66/IP50
– Spenning: EP – electronic 220-240 V/ 50-60 Hz AC, 220-240 V DC 0Hz
– up167 lumen/watt
– Fargetemperatur: NW (4000 K)
– CRI +80/90
– Materiale:
Housing:
White painted steel sheet RAL 9016
Fastening:
Mounting into false ceilings of M625 modules. Minimum height of mounting space is 200 mm.
Connection:
Connection by means of ADELS connector, maximum diameter of wires 2,5 2.
On request:
MULTI – maintained emergency lighting is always on (standard luminaire with emergency lighting module) (1h, 3h)
DIM – dimmable electronic ballast (DALI)
Leveres i følgene størrelser:
17 watt
– 2838 lm
– Størrelse: A-598 x B -598 x C-79 mm (se tegnig)
– Vekt: 11,5 kg
41 watt
– 6127 lm
– Størrelse: A-598 x B -598 x C-79 mm (se tegnig)
– Vekt: 11,5 kg
70 watt
– 6728 lm
– Størrelse: A-598 x B -598 x C-79 mm (se tegnig)
– Vekt: 11,5 kg
Vi gjør lysberegning!
Ta kontakt for tilbud og mer info
Tel: 909 54 606
E-post: post@ledx.no
