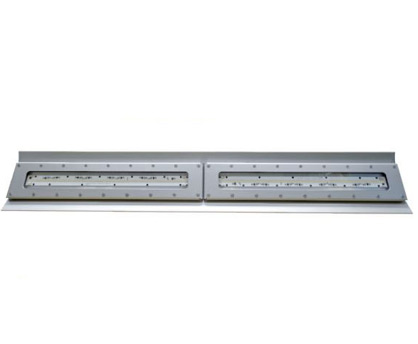

LED eksplosjon beskyttet lampe modell 13 4ft (LED-HØYT-4f20)(T-L1319C-4ft)

4ft
Wattstyrke.: 40W / 80W / 120W
Volt.: 110V / 120V / 220V / 277V / 347V(only 80W) / 480V(only 80W) AC
Amps: 40W (0.14A~0.36A) / 80W (0.17A~0.72A) / 120W (0.43A~1.09A)
Frequency: 50Hz / 60Hz
Power Factor: cos≧0.9

Ambiet temperature:
-20°C ~ +55°C, T6
CID2: -40°C ~ +55°C, T4 / CIID2: +55°C, T5 (UL Certification)

Fargetemperatur: 3000K (Warm White) / 5000K (Cool White)
CRI : Warm White≧80 / Cool White≧70
Lumen/Watt. : ≧ 100 (Warm White) / ≧ 110 (Cool White)
Lys vinkel: X-116° / Y-114°
Vekt: 11.6 kg

Protection
Degree of Protection – IP67 / NEMA 6

IECEx Certification
Ex nR IIC T6 Gc
Ex tb IIIC T85°C Db

ATEX Certification
II 3 G Ex nR IIC T6 Gc
II 2 D Ex tb IIIC T85°C Db

UL Certification
UL844 – Class I, Division 2 (Group A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
UL1598

TIIS Certification
IIC T6 Gc
TS Certification

Ex nR IIC T5 Gc
Ex tb IIIC T95°C Db

Light Features
Light weight; stream line design
Heat Resistance 85°C to 100°C
Product comes with reflector and contentrate light source

Applicable Location

Zone 2
Zone 21 & Zone 22
Class I, Division 2 (Group A, B, C and D)
Class II, Division 2 (Group F and G)
Class III

Laste ned spesifikasjon
