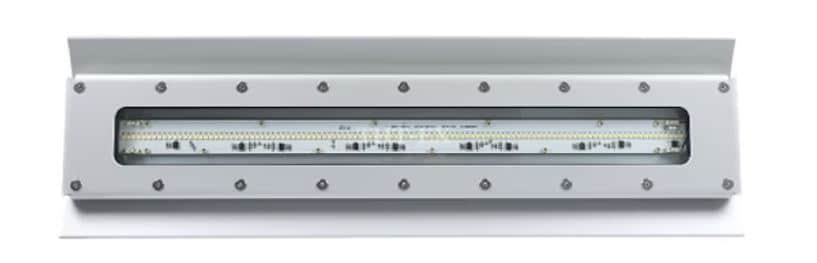

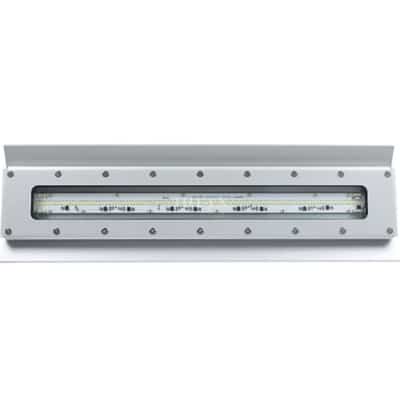

LED eksplosjon beskyttet lampe modell 13 2ft (LED-HØYT-20)(T-L1319C-2ft)

2ft
Wattstyrke.: 40W / 60W
Volt.: 110V / 120V / 220V / 277V AC
Amps: 40W (0.14A~0.36A) / 60W (0.22A~0.55A)
50Hz / 60Hz
Power Factor: cos≧0.9

Ambient temperature:
-20°C ~ +55°C, T6
CID2: -40°C ~ +55°C, T4 / CIID2: +55°C, T5 (UL Certification)

Fargetemperatur: : 3000K (Warm White) / 5000K (Cool White)
CRI : Warm White≧80 / Cool White≧70
Lum/Watt. : ≧ 100 (Warm White) / ≧ 110 (Cool White)
Lys vinkel: X-116° / Y-114°
Vekt: 5.5 kg

Protection
Degree of Protection – IP67 / NEMA 6

IECEx Certification
Ex nR IIC T6 Gc
Ex tb IIIC T85°C Db

ATEX Certification
II 3 G Ex nR IIC T6 Gc
II 2 D Ex tb IIIC T85°C Db

UL Certification
UL844 – Class I, Division 2 (Group A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
UL1598

TIIS Certification
IIC T6 Gc

TS Certification
Ex nR IIC T5 Gc
Ex tb IIIC T95°C Db

Light weight; stream line design
Heat Resistance 85°C to 100°C
Product comes with reflector and contentrate light source

Applicable Location

Zone 2
Zone 21 & Zone 22
Class I, Division 2 (Group A, B, C and D)
Class II, Division 2 (Group F and G)
Class III
